產品描述

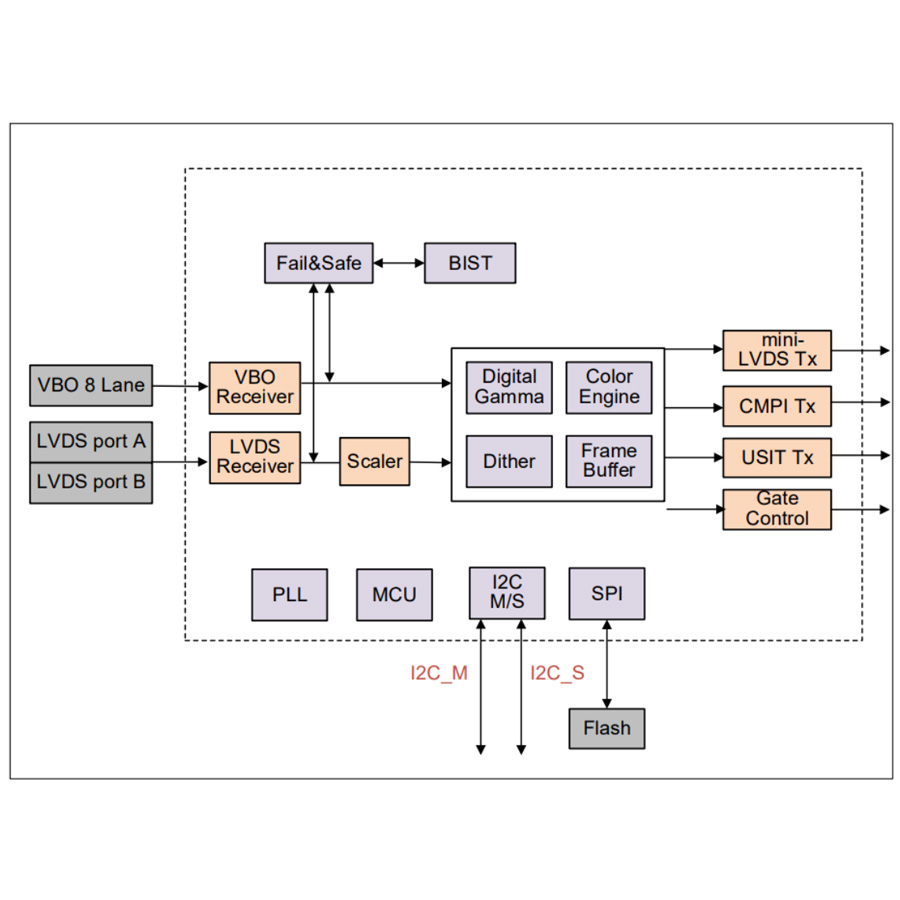

NCS8837 is a timing controller with 8 Lane V-by-One or 2 Port LVDS receiver and miniLVDS/USIT/CMPI transmitter for TFT-LCD panel. It supports up to UHD (3840x2160@60Hz) resolutions. The mini-LVDS interface embedded with reset pulse to source driver, and clock rate could support to 425.000MHz. The USIT interface and CMPI interface with point-topoint embedded clock transmission support bit-rate of each pair up to 1.5Gbps.
產品參數
• Input
• Support 8 lane V-by-One receiver
• Support 2 channel LVDS receiver
• 6bit/8bit/10bit input
• Output
• Support mini-LVDS 1/2/4 port-3/6 pair
• Support USIT 2/4/6/8/12/24 pair
• Support CMPI 2/4/6/8/12/24 pair
• 6bit/8bit output
• TCON
• Support built-in self-test (BIST) pattern function
• Support 1/2/4 frame inversion polarity control
• Support 1-line/2-line/1+2-line/Column inversion polarity control
• Support POL 28s inversion
• Support ODD/EVEN signal for Level Shifter
• Support Normal gate, GOA, Dual gate, Triple gate
• Support Z-inversion data mapping
• Support Single-Source(1D1G) mapping
• Support H-mirror
• Support R/B swap, Polarity swap, Port swap, MSB/LSB swap
• Support Aging mode
• Support spread spectrum clock generator (SSCG) for EMI issue
• Support 12-bit digital gamma function
• Support Dither (FRC)
• Support color engine
• Support Scaling function
• Power
• 3.3V/1.8V/1.2V power supply
• Miscellaneous
• Built-in MCU
• Support internal oscillator or external crystal source input
• Support master I2C interface and slave I2C interface
• Support master SPI interface

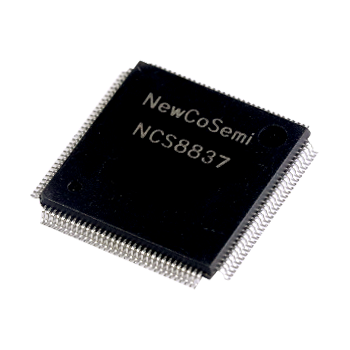

• Package
• 128-pin eLQFP 14mmx14mm package with E-Pad
• RoHS Compliant
